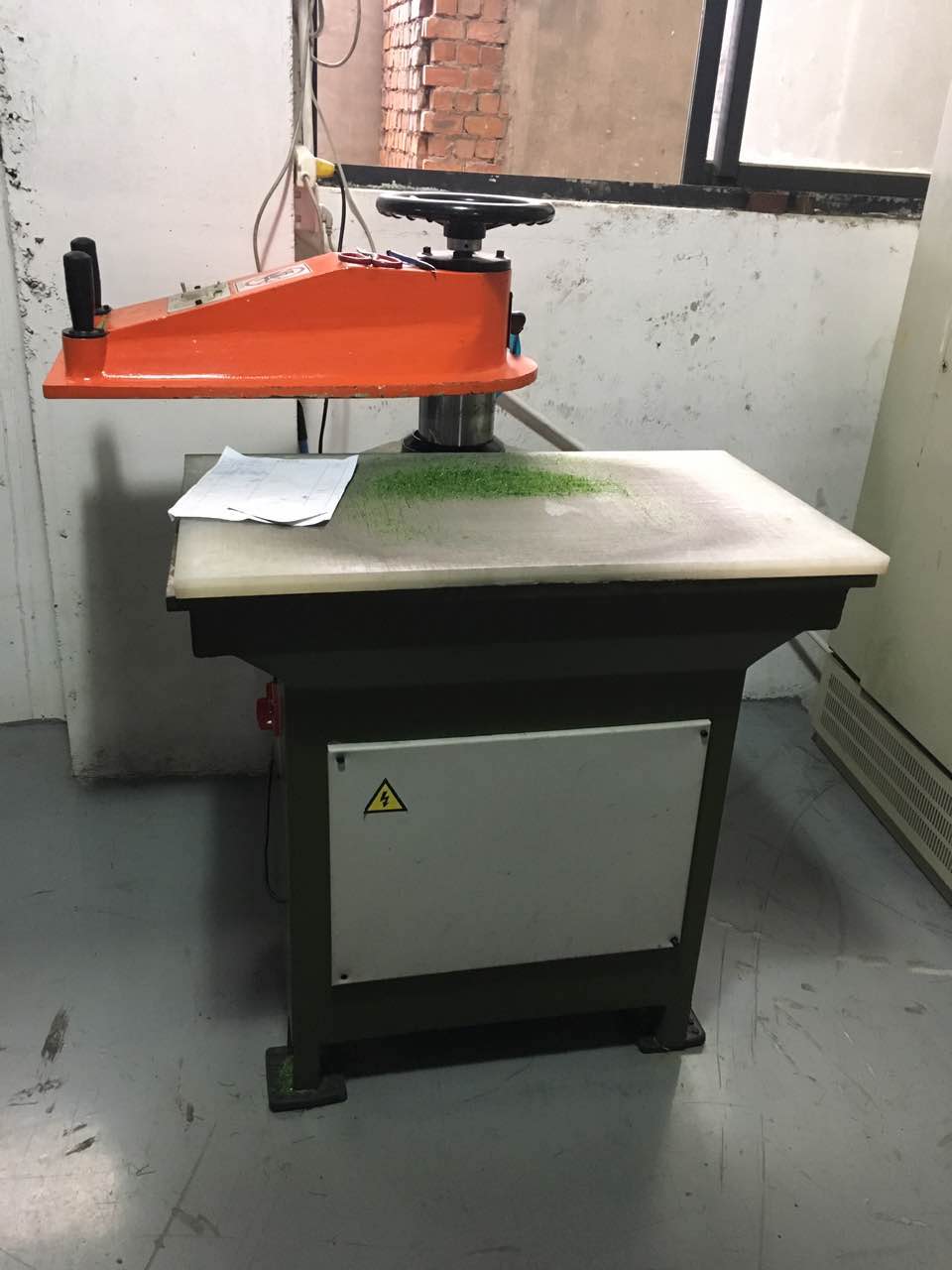

    Grass sample cut machine

    Major Technical Parameters

    (1) Max cutting force: 120KN;
    (2) Upper workbench area: 350×380mm;
    (3) Lower workbench area: 400×800mm;
    (4) Power of main motor: 0.75KW/1.5KW;
    (5) Machine weight: 350KG;
    (6) Distance from upper pressing plate to workbench: 45~120mm;
    (7) Power supply: 380V, 50HZ/220V, 50HZ;
    (8) Color: customizable;
    (9) Boundary dimension (wooden case): 1000×1200×1500 mm

Introduction
1. Rotate the Cutting Depth knob to the maximum left.
2. Put the cutting materials on the workbench.
3. Put the cutting knife on the cutting materials.
4. Move the swing arm directly above the cutting knife and try the best to put the swing arm
and the center line of the cutting knife on the same line.
5. Rotate the upper hand wheel (the swing arm will descend if rotated clockwise, and the
swing arm will rise if rotated counterclockwise), and make sure that there is a distance of
6-10 cm between the swing arm and the top of cutting knife.
6. Press the START button.
7. Press the swing arm descending button with two hands. The two buttons must be pressed
within 1 second. If the materials are not cut, rotate the cutting depth knob to the right.
8. Adjust the rotation knob of the swing arm according to situationin “7” and lock it down.
9. Repeat “7” and “8” until the cutting knife is slightly
